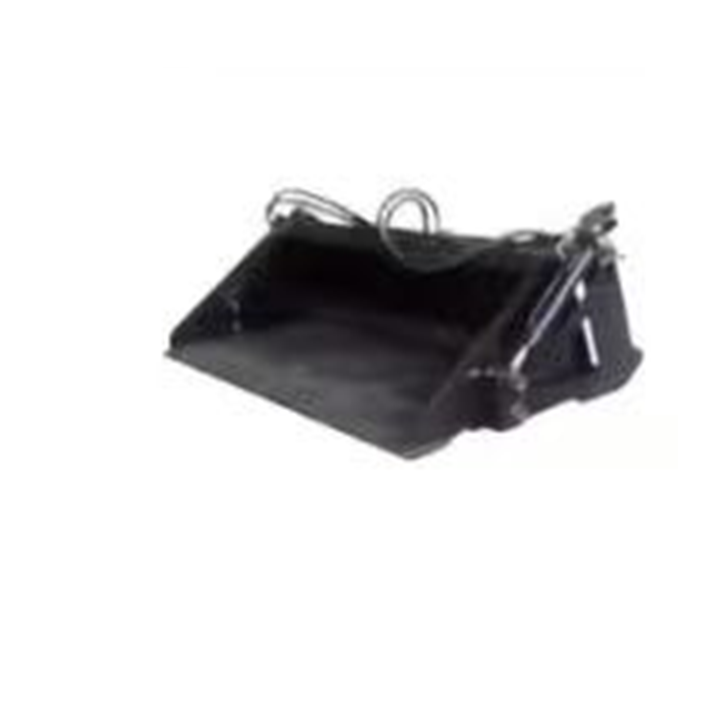

High Dump Bucket
- Capacity
- 0.45 m³
- Working pressure
- 16 MPa
- Weight
- 175 kg
- Length
- 1024 mm
High Dump Bucket size comparison
| Specification | 66 in | 72 in | 84 in |
|---|---|---|---|
| Capacitym³ | 0.45 | 0.5 | 0.6 |
| Working pressureMPa | 16 | 16 | 16 |
| Weightkg | 175 | 190 | 220 |
| Lengthmm | 1024 | 1024 | 1024 |
| Widthmm | 1722 | 1876 | 2180 |
| Heightmm | 495 | 495 | 495 |
Product information
Description
Raise the discharge point for loading taller containers or trucks, with three documented bucket sizes. Lift geometry, load center, hydraulic control, and loader capacity require review.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Product questions
High Dump Bucket FAQs
What work is High Dump Bucket intended for?
Raise the discharge point for loading taller containers or trucks, with three documented bucket sizes. Lift geometry, load center, hydraulic control, and loader capacity require review.
Will High Dump Bucket fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating High Dump Bucket as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for High Dump Bucket?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect High Dump Bucket selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a High Dump Bucket quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
