Forks

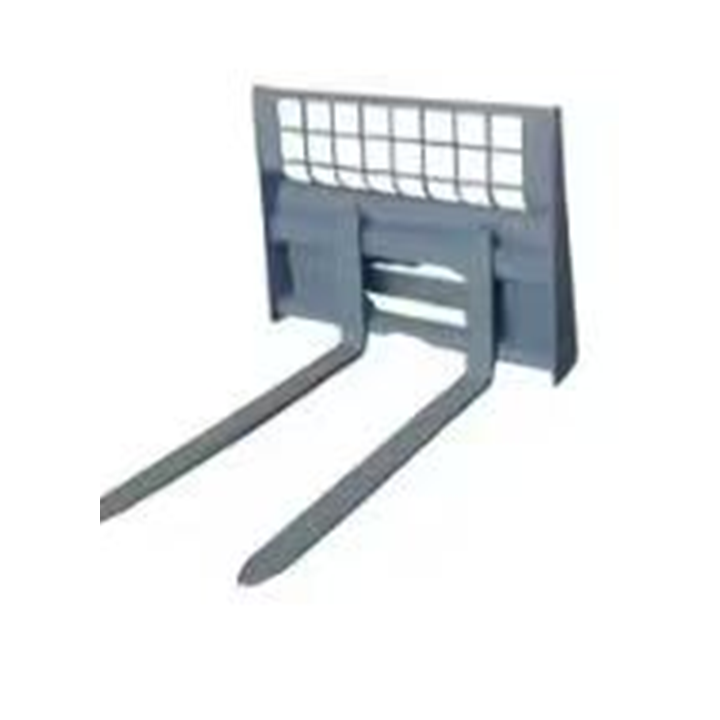

Pallet Forks
Move palletized loads with documented 1,000 kg and 1,500 kg rated configurations.
View productForks

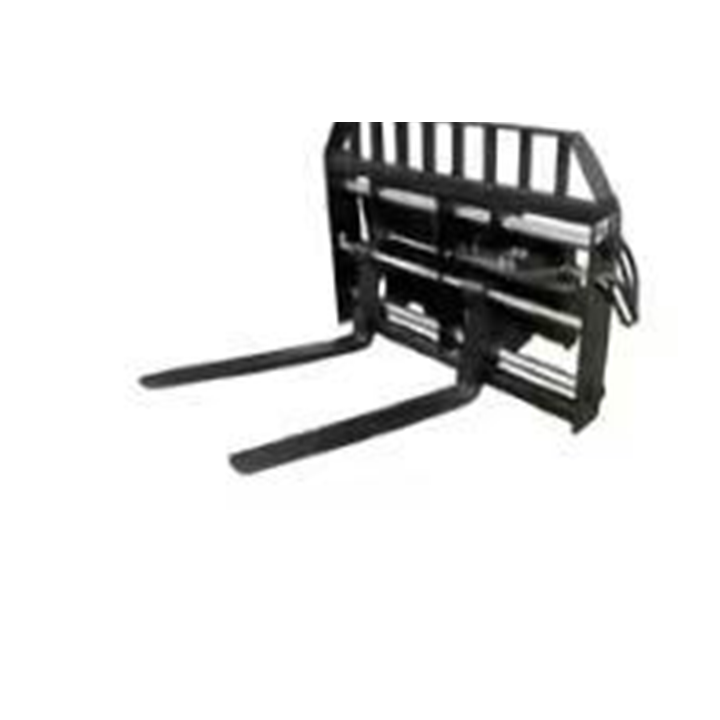

Side Shift Pallet Fork
- Rated load
- 1500 kg
- Fork length
- 1100 mm
- Height
- 1224 mm
- Weight
- 350 kg
Side Shift Pallet Fork specifications
| Specification | 1.5 t rated load |
|---|---|
| Rated loadkg | 1500 |
| Fork lengthmm | 1100 |
| Working pressureMPa | 16–21 |
| Hydraulic flowL/mm | 40–90 |
| Lengthmm | 1518 |
| Widthmm | 1395 |
| Heightmm | 1224 |
| Weightkg | 350 |
Product information
Description
Position and carry palletized material with a documented 1,500 kg rated load and hydraulic side shift.
Attachments for lifting, gripping, carrying, loading, and controlled placement.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Product questions
Side Shift Pallet Fork FAQs
What work is Side Shift Pallet Fork intended for?
Position and carry palletized material with a documented 1,500 kg rated load and hydraulic side shift.
Will Side Shift Pallet Fork fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Side Shift Pallet Fork as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Side Shift Pallet Fork?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Side Shift Pallet Fork selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Side Shift Pallet Fork quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
