Trenchers
Ditch Digger
Open a narrow ditch with a documented 750 mm working width.
View productTrenchers

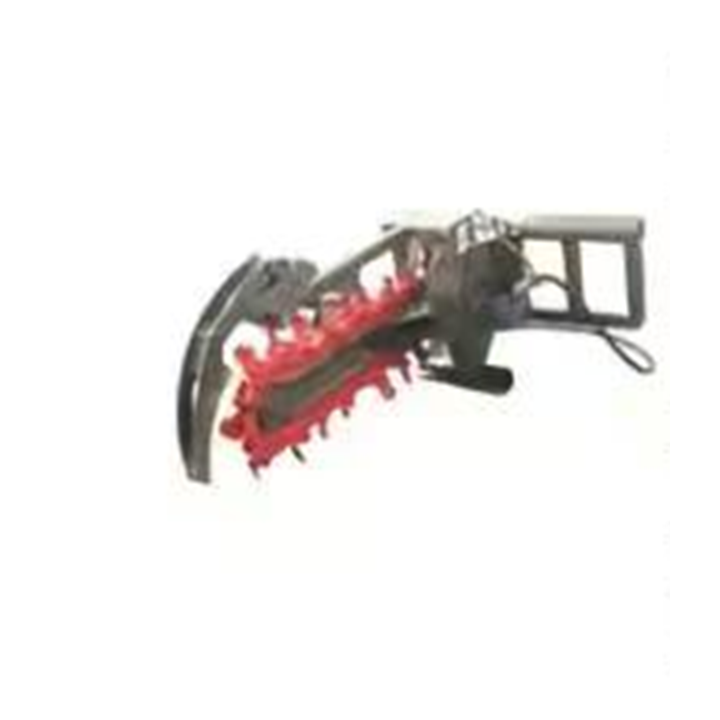

Trencher
- Trench width
- 200 mm
- Trench depth
- 900 mm
- Hydraulic flow
- 50–75 L/mm
- Working pressure
- 16 MPa
Trencher size comparison
| Specification | 200 × 900 mm | 300 × 1,200 mm | 150–200 × 2,000 mm |
|---|---|---|---|
| Trench widthmm | 200 | 300 | 150–200 |
| Trench depthmm | 900 | 1200 | 2000 |
| Hydraulic flowL/mm | 50–75 | 50–125 | 50–125 |
| Working pressureMPa | 16 | 16 | 16 |
| Weightkg | 320 | 530 | 730 |
| Lengthmm | 1950 | 3300 | 3300 |
| Widthmm | 1160 | 1265 | 1265 |
| Heightmm | 850 | 900 | 900 |
Product information
Description
Cut utility or drainage trenches with three documented width-and-depth configurations. Chain type, spoil conditions, hydraulic flow, and carrier limits require review.
Tools for drilling, trenching, breaking, excavating, and working compacted ground.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Product questions
Trencher FAQs
What work is Trencher intended for?
Cut utility or drainage trenches with three documented width-and-depth configurations. Chain type, spoil conditions, hydraulic flow, and carrier limits require review.
Will Trencher fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Trencher as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Trencher?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Trencher selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Trencher quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
