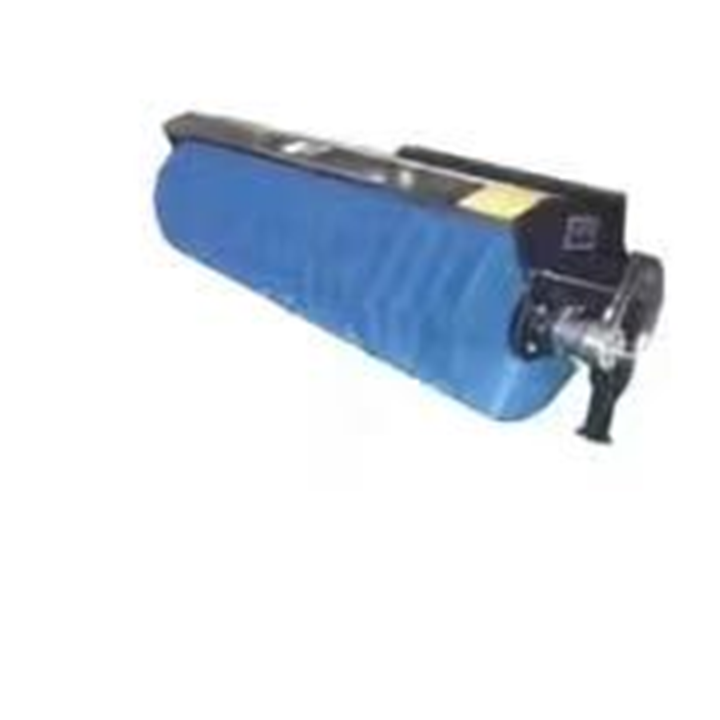

Angle Broom
- Working width
- 1828 mm
- Brush diameter
- 560 mm
- Swing angle
- 30 °
- Hydraulic flow
- 50–125 L/mm
Angle Broom size comparison
| Specification | 72 in · 560 mm brush | 72 in · 670 mm brush | 84 in · 670 mm brush | 84 in · 812 mm brush |
|---|---|---|---|---|
| Working widthmm | 1828 | 1828 | 2133 | 2133 |
| Brush diametermm | 560 | 670 | 670 | 812 |
| Swing angle° | 30 | 30 | 30 | 25 |
| Hydraulic flowL/mm | 50–125 | 50–125 | 50–125 | 50–125 |
| Working pressureMPa | 16 | 16 | 16 | 16–21 |
| Weightkg | 340 | 380 | 420 | 480 |
| Lengthmm | 2030 | 2030 | 2335 | 1780 |
| Widthmm | 1020 | 1020 | 1050 | 2450 |
| Heightmm | 640 | 740 | 740 | 900 |
Product information
Description
Windrow dirt, snow, and loose debris to one side with an angled broom. Brush diameter, swing angle, flow, and overall envelope vary by configuration.
Attachments for snow removal, sweeping, scraping, and jobsite cleanup.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Sweepers, Brooms & Cleaning
Dung Pushing Device
Push livestock waste or loose material across a documented maximum 3,000 mm working width.
View product
Sweepers, Brooms & Cleaning
Simple Manure Pushing Machine
Push livestock waste or loose material across a documented maximum 2,000 mm working width.
View productProduct questions
Angle Broom FAQs
What work is Angle Broom intended for?
Windrow dirt, snow, and loose debris to one side with an angled broom. Brush diameter, swing angle, flow, and overall envelope vary by configuration.
Will Angle Broom fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Angle Broom as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Angle Broom?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Angle Broom selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Angle Broom quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
