Attachment Service Parts

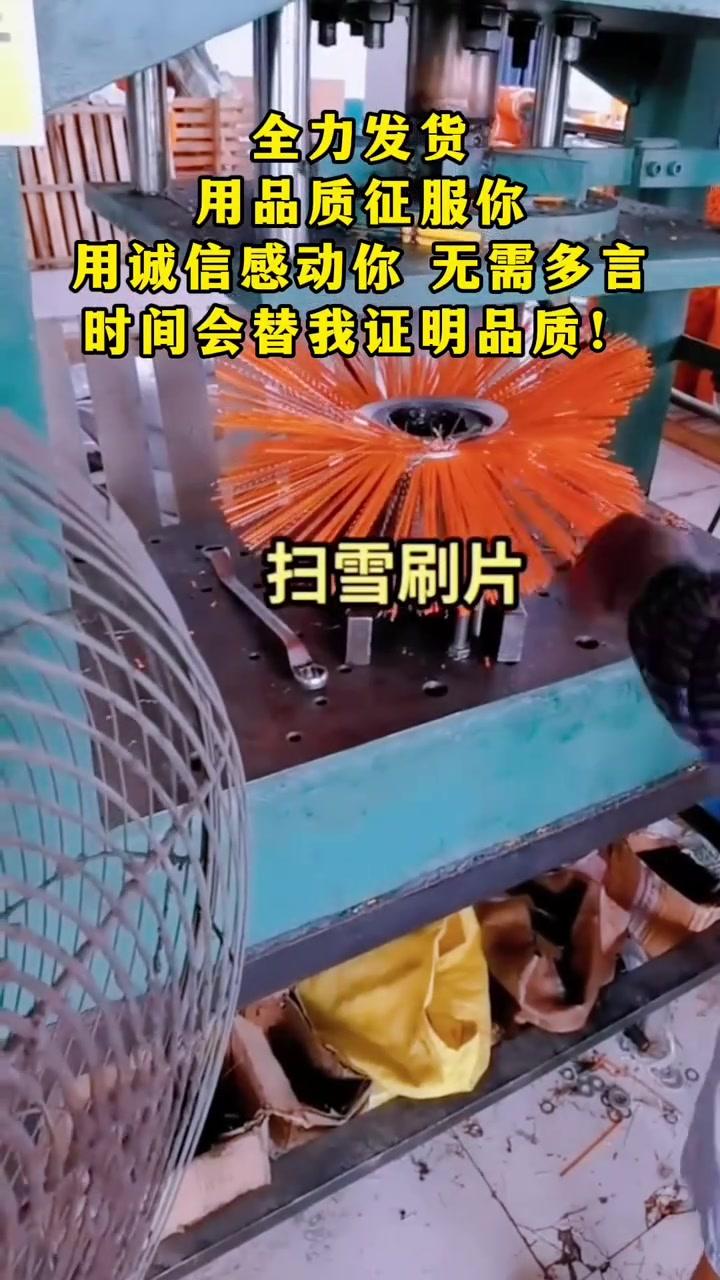

Sweeper Brush Segments
Replacement brush segments shown in source production and shipment photos. Diameter, wafer style, core, bristle material, quantity, and sweeper application require verification.
View productSweepers, Brooms & Cleaning

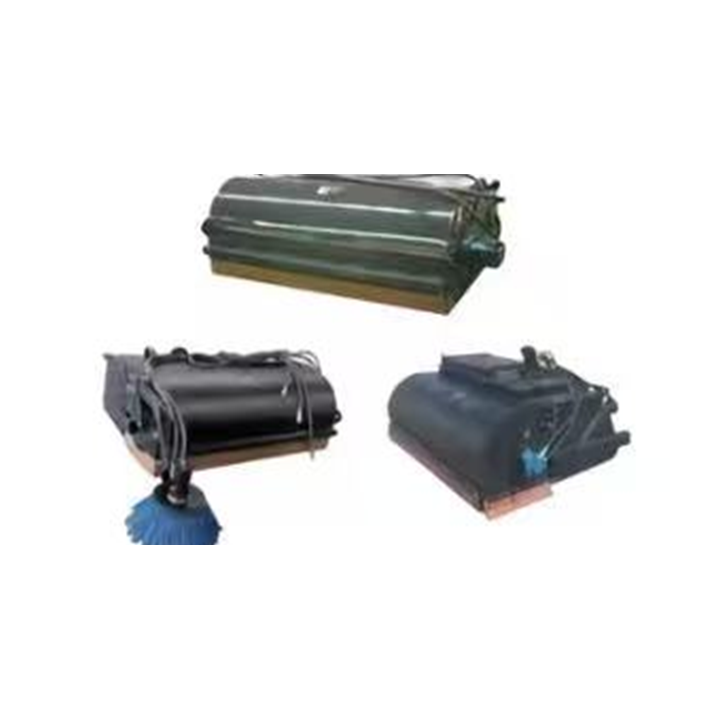

Sweeper / Gutter Brush
- Working width
- 1524 mm
- Brush diameter
- 560 mm
- Bucket capacity
- 0.32 m³
- Working pressure
- 16 MPa
Sweeper / Gutter Brush size comparison
| Specification | 60 in · 560 mm brush | 66 in · 560 mm brush | 72 in · 560 mm brush | 72 in · 670 mm brush | 84 in · 670 mm brush |
|---|---|---|---|---|---|
| Working widthmm | 1524 | 1676 | 1828 | 1828 | 2130 |
| Brush diametermm | 560 | 560 | 560 | 670 | 670 |
| Bucket capacitym³ | 0.32 | 0.35 | 0.4 | 0.5 | 0.55 |
| Working pressureMPa | 16 | 16 | 16 | 16 | 16 |
| Hydraulic flowL/mm | 50–75 | 50–75 | 50–75 | 50–125 | 50–125 |
| Weightkg | 380 | 420 | 520 | 590 | 600 |
| Lengthmm | 1895 | 2050 | 2200 | 2200 | 3500 |
| Widthmm | 1350 | 1350 | 1350 | 1560 | 1560 |
| Heightmm | 620 | 620 | 620 | 720 | 720 |
Product information
Description
Collect loose debris with a closed sweeper configuration; documented brush diameters and hydraulic-flow ranges vary by size.
Attachments for snow removal, sweeping, scraping, and jobsite cleanup.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Sweepers, Brooms & Cleaning
Manure Scraper
Scrape and collect material in agricultural cleanup work.
View product
Sweepers, Brooms & Cleaning

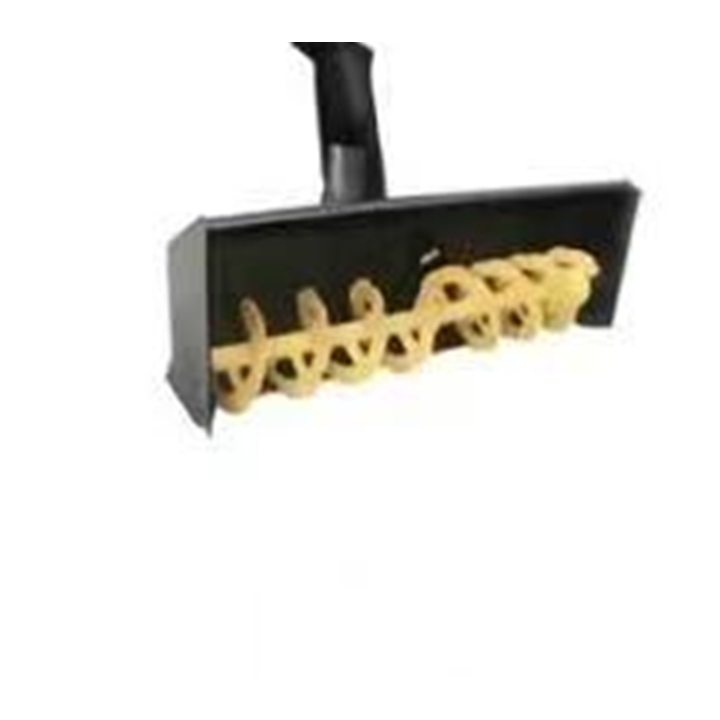

Snowblower
Collect and discharge snow with three documented working-width and hydraulic-flow configurations. Snow conditions, chute control, guarding, and loader capacity require review.
View productProduct questions
Sweeper / Gutter Brush FAQs
What work is Sweeper / Gutter Brush intended for?
Collect loose debris with a closed sweeper configuration; documented brush diameters and hydraulic-flow ranges vary by size.
Will Sweeper / Gutter Brush fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Sweeper / Gutter Brush as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Sweeper / Gutter Brush?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Sweeper / Gutter Brush selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Sweeper / Gutter Brush quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
