Augers

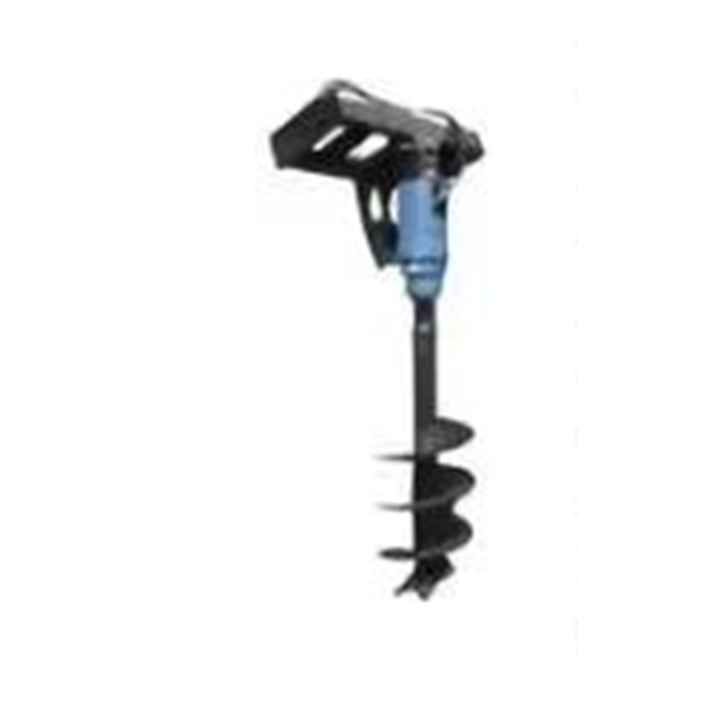

Auger
Drill holes with three documented drive-torque configurations. Bit diameter, soil conditions, auxiliary flow, pressure, and loader stability require review.
View productAugers

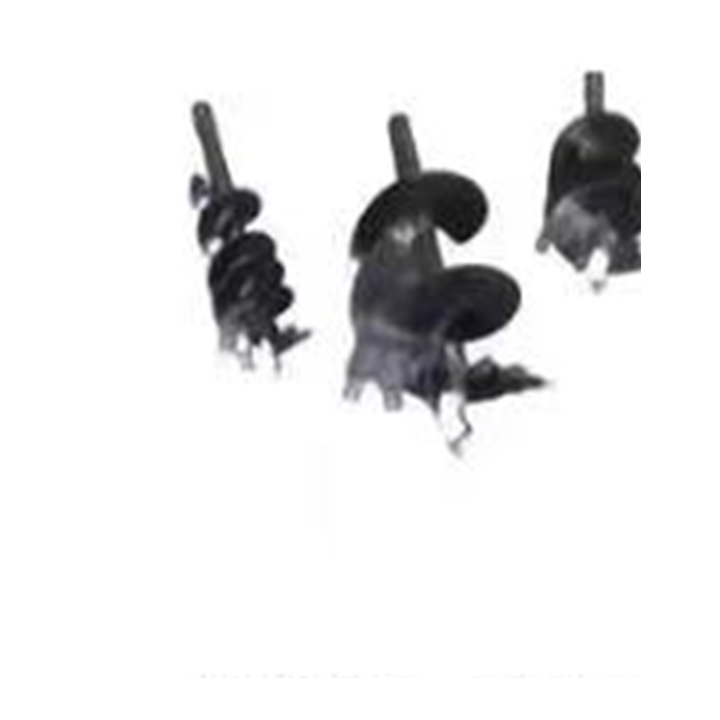

Auger Bit
- Diameter
- 150 mm
- Length
- 1000 mm
- Drive interface
- 50.8 mm
- Coupling specification
- SB30
Auger Bit size comparison
| Specification | 6 in | 9 in | 12 in | 18 in | 24 in | 30 in |
|---|---|---|---|---|---|---|
| Diametermm | 150 | 230 | 300 | 450 | 600 | 750 |
| Lengthmm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Drive interface | 50.8 mm | 50.8 mm | 50.8 mm | 50.8 mm | Square | Square |
| Coupling specification | SB30 | SB30 | SB35 | SB45 | SB45 | SB45 |
| Weightkg | 26 | 30 | 32 | 38 | 48 | 65 |
Product information
Description
Replaceable auger bits documented from 6 to 30 inches. Drive-head coupling, flighting, tooth style, ground conditions, and required depth must be confirmed.
Tools for drilling, trenching, breaking, excavating, and working compacted ground.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Product questions
Auger Bit FAQs
What work is Auger Bit intended for?
Replaceable auger bits documented from 6 to 30 inches. Drive-head coupling, flighting, tooth style, ground conditions, and required depth must be confirmed.
Will Auger Bit fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Auger Bit as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Auger Bit?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Auger Bit selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Auger Bit quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
