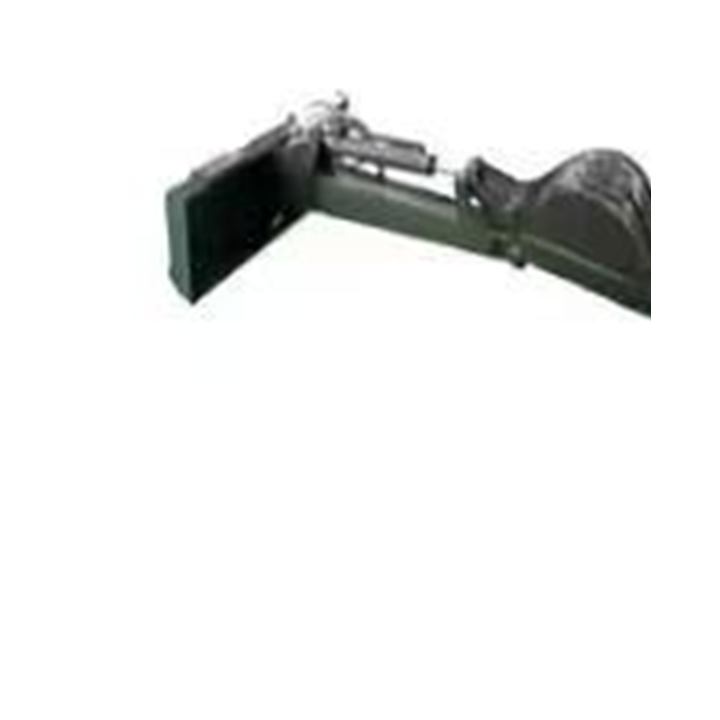

Backhoe Arm
- Bucket width
- 380 mm
- Bucket capacity
- 0.06 m³
- Maximum digging depth
- 2000 mm
- Working pressure
- 16 MPa
Backhoe Arm specifications
| Specification | 380 mm bucket |
|---|---|
| Bucket widthmm | 380 |
| Bucket capacitym³ | 0.06 |
| Maximum digging depthmm | 2000 |
| Working pressureMPa | 16 |
| Weightkg | 300 |
| Lengthmm | 1770 |
| Widthmm | 1170 |
| Heightmm | 740 |
Product information
Description
A compact backhoe arm for focused excavation from the loader. Bucket, pivot structure, digging depth, hydraulics, and carrier stability require review.
Tools for drilling, trenching, breaking, excavating, and working compacted ground.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Product questions
Backhoe Arm FAQs
What work is Backhoe Arm intended for?
A compact backhoe arm for focused excavation from the loader. Bucket, pivot structure, digging depth, hydraulics, and carrier stability require review.
Will Backhoe Arm fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Backhoe Arm as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Backhoe Arm?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Backhoe Arm selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Backhoe Arm quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
