Pile Driver — Impact Type
- Operating weight
- 500 kg
- Impact rate
- 500–900 bpm
- Tool diameter
- 68 mm
- Working pressure
- 11–14 MPa
Pile Driver — Impact Type specifications
| Specification | 68 mm tool |
|---|---|
| Operating weightkg | 500 |
| Impact ratebpm | 500–900 |
| Tool diametermm | 68 |
| Working pressureMPa | 11–14 |
| Hydraulic flowL/min | 40–70 |
| Lengthmm | 1500 |
| Widthmm | 1200 |
| Heightmm | 700 |
Product information
Description

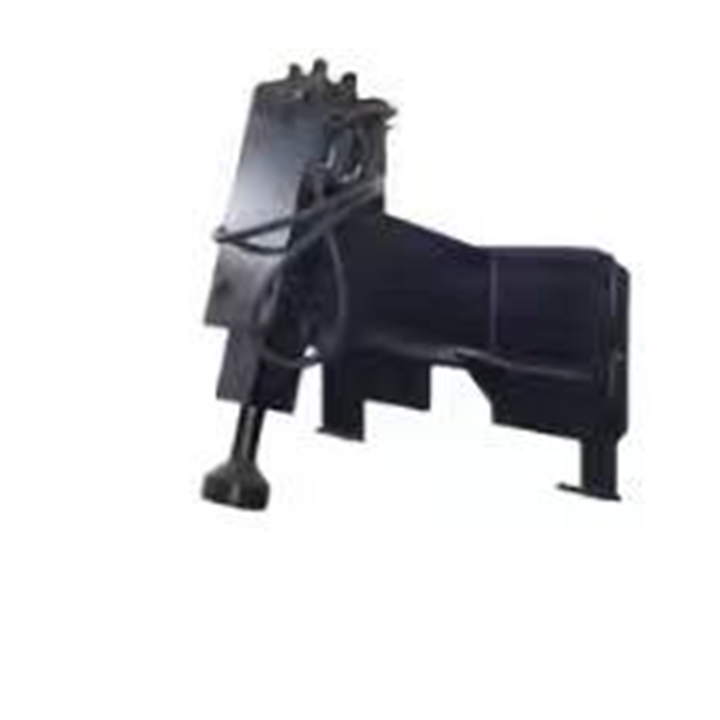

Drive compatible piles with a hydraulic impact structure. Pile profile, guide, impact rate, pressure, flow, ground conditions, and carrier capacity require review.
Tools for drilling, trenching, breaking, excavating, and working compacted ground.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Product questions
Pile Driver — Impact Type FAQs
What work is Pile Driver — Impact Type intended for?
Drive compatible piles with a hydraulic impact structure. Pile profile, guide, impact rate, pressure, flow, ground conditions, and carrier capacity require review.
Will Pile Driver — Impact Type fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Pile Driver — Impact Type as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Pile Driver — Impact Type?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Pile Driver — Impact Type selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Pile Driver — Impact Type quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
