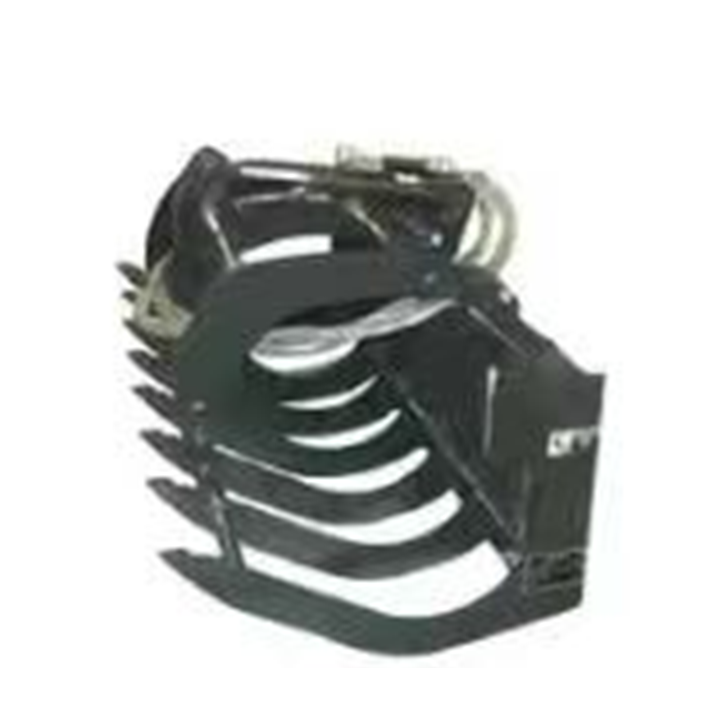

Grapple Rake
- Working width
- 1680 mm
- Working height
- 860 mm
- Pressure
- 16 MPa
- Weight
- 190 kg
Grapple Rake size comparison
| Specification | 66 in | 72 in |
|---|---|---|
| Working widthmm | 1680 | 1830 |
| Working heightmm | 860 | 860 |
| Working lengthmm | 940 | 940 |
| Weightkg | 190 | 210 |
| Working pressureMPa | 16 | 16 |
Product information
Description
Rake and secure brush or irregular material with 66 and 72 inch working-width options.
Attachments for lifting, gripping, carrying, loading, and controlled placement.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Product questions
Grapple Rake FAQs
What work is Grapple Rake intended for?
Rake and secure brush or irregular material with 66 and 72 inch working-width options.
Will Grapple Rake fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Grapple Rake as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Grapple Rake?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Grapple Rake selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Grapple Rake quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
