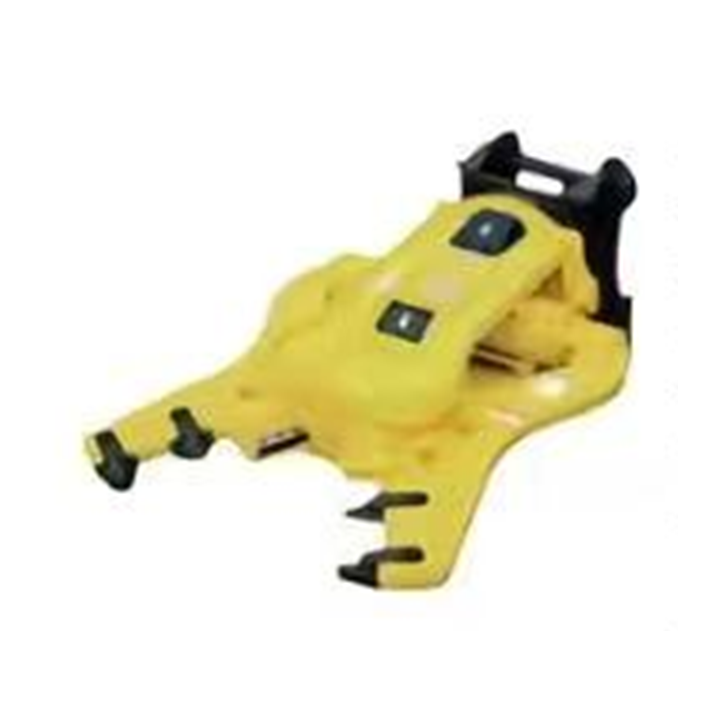

Hydraulic Shear
Cut or crush material with three documented shear models; the source specifies 3–8 ton excavator carriers.
View productBreakers, Saws, Planers & Grinders

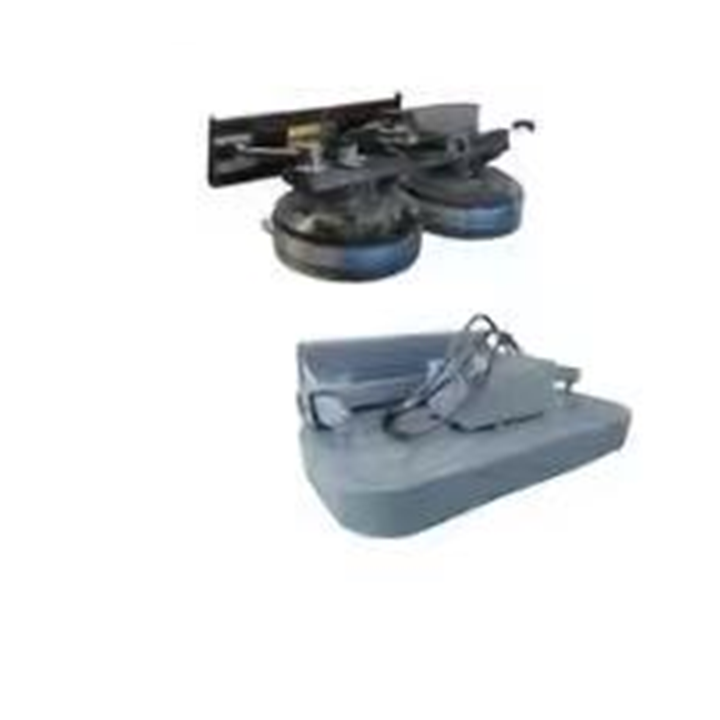

Floor Grinder
- Working width
- 1698 mm
- Lateral swing
- 110 mm
- Working pressure
- 16 MPa
- Weight
- 670 kg
Floor Grinder specifications
| Specification | 1,698 mm working width |
|---|---|
| Working widthmm | 1698 |
| Lateral swingmm | 110 |
| Working pressureMPa | 16 |
| Weightkg | 670 |
| Lengthmm | 1326 |
| Widthmm | 1540 |
| Heightmm | 788 |
Product information
Description
Grind or texture compatible floor surfaces with a multi-head attachment. Abrasive tooling, dust control, surface, hydraulic supply, and carrier stability require review.
Tools for drilling, trenching, breaking, excavating, and working compacted ground.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Breakers, Saws, Planers & Grinders

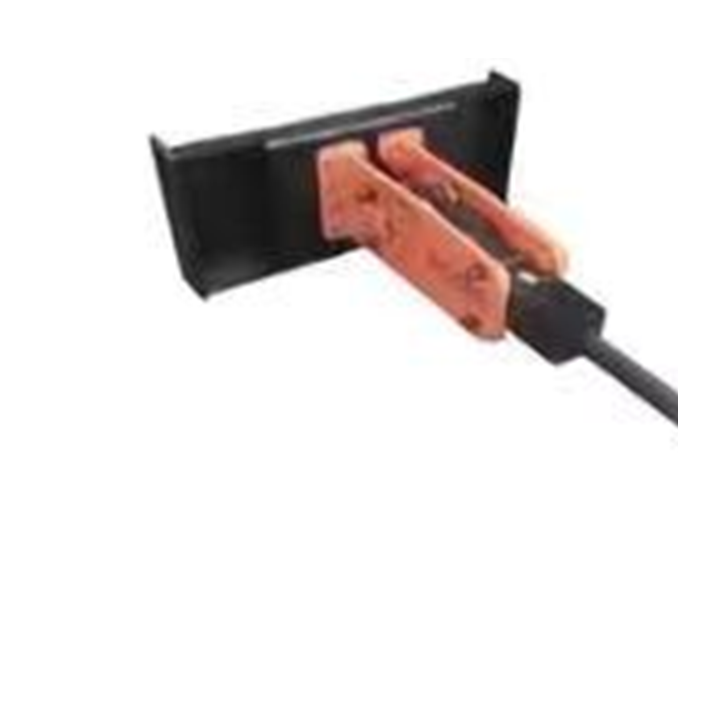

Hydraulic Breaker
Break concrete, rock, and hard surfaces with two documented breaker configurations. Carrier, tool diameter, pressure, flow, and return-line requirements must be confirmed.
View product
Breakers, Saws, Planers & Grinders

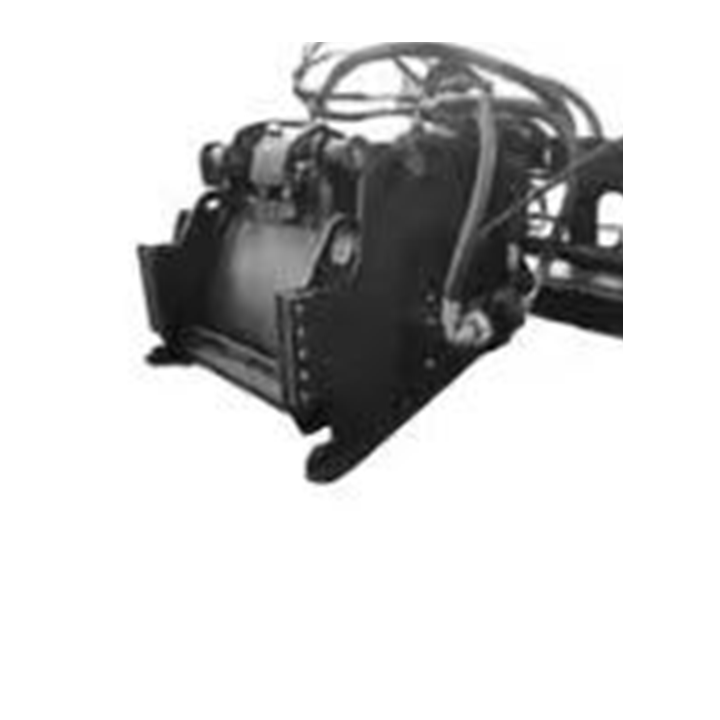

Cold Planer
Mill asphalt or concrete with XB450 and XB600 cutting-width configurations. Hydraulic flow, controls, drum tooling, and surface application require review.
View productProduct questions
Floor Grinder FAQs
What work is Floor Grinder intended for?
Grind or texture compatible floor surfaces with a multi-head attachment. Abrasive tooling, dust control, surface, hydraulic supply, and carrier stability require review.
Will Floor Grinder fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Floor Grinder as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Floor Grinder?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Floor Grinder selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Floor Grinder quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
