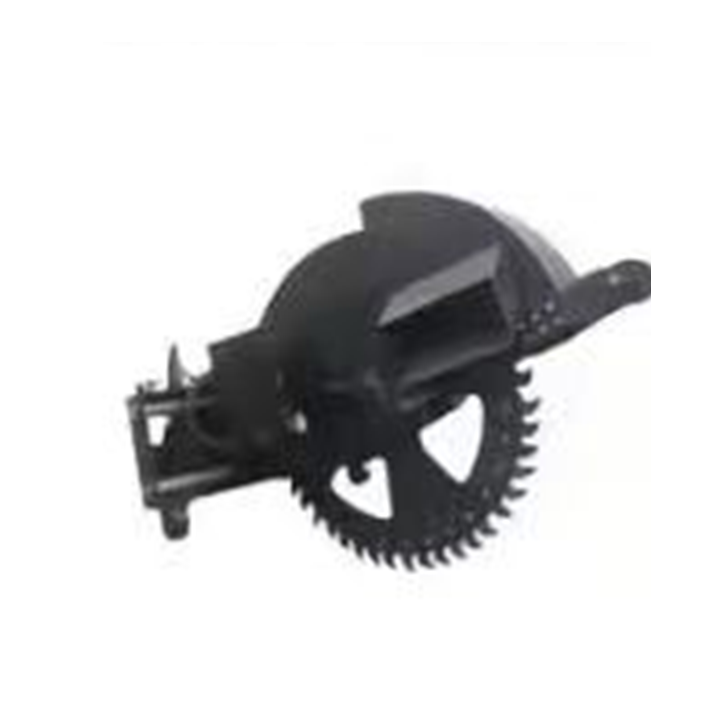

Wheel Saw
- Cutting depth
- 450–500 mm
- Blade width
- 50–105 mm
- Blade diameter
- 1350 mm
- Hydraulic flow
- 100–125 L/mm
Wheel Saw size comparison
| Specification | 450–500 mm cut | 600 mm cut | 300–400 mm cut |
|---|---|---|---|
| Cutting depthmm | 450–500 | 600 | 300–400 |
| Blade widthmm | 50–105 | 50–120 | 50–120 |
| Blade diametermm | 1350 | 1550 | Not documented |
| Hydraulic flowL/mm | 100–125 | 100–125 | 100–125 |
| Working pressureMPa | 16 | 16 | 16 |
| Weightkg | 950–1100 | 1250 | 950 |
| Lengthmm | 2485 | 2485 | 1935 |
| Widthmm | 1700 | 1700 | 1700 |
| Heightmm | 1570 | 1670 | 1315 |
Product information
Description
Cut trenches or slots in hard surfaces with a guarded wheel-saw attachment. Final blade diameter, cutting range, hydraulic circuit, and spoil handling require review.
Tools for drilling, trenching, breaking, excavating, and working compacted ground.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Breakers, Saws, Planers & Grinders
Hydraulic Breaker
Break concrete, rock, and hard surfaces with two documented breaker configurations. Carrier, tool diameter, pressure, flow, and return-line requirements must be confirmed.
View product
Breakers, Saws, Planers & Grinders
Cold Planer
Mill asphalt or concrete with XB450 and XB600 cutting-width configurations. Hydraulic flow, controls, drum tooling, and surface application require review.
View productProduct questions
Wheel Saw FAQs
What work is Wheel Saw intended for?
Cut trenches or slots in hard surfaces with a guarded wheel-saw attachment. Final blade diameter, cutting range, hydraulic circuit, and spoil handling require review.
Will Wheel Saw fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Wheel Saw as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Wheel Saw?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Wheel Saw selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Wheel Saw quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
