Breakers, Saws, Planers & Grinders
Hydraulic Breaker
Break concrete, rock, and hard surfaces with two documented breaker configurations. Carrier, tool diameter, pressure, flow, and return-line requirements must be confirmed.
View productBreakers, Saws, Planers & Grinders
Hydraulic Shear
- Expanded height
- 1024 mm
- Maximum breaking force
- 34 ton
- Maximum cutting force
- 76 ton
- Weight
- 322 kg
Hydraulic Shear size comparison
| Specification | SMC03 MS | SMC03 MC | SMC05 |
|---|---|---|---|
| Total weightkg | 322 | 318 | 530 |
| Expanded heightmm | 1024 | 1024 | 1357 |
| Maximum openingmm | 433 | 433 | 596 |
| Blade lengthmm | 90 | 120 | 120 |
| Maximum breaking forceton | 34 | 34 | 32 |
| Maximum cutting forceton | 76 | 76 | 105 |
| Maximum cylinder pressurebar | 250 | 250 | 250 |
| Cylinder driving flowlpm | 20–90 | 20–90 | 45–100 |
| Rotation° | 360 | 360 | 360 |
| Source excavator classton | 3–5 | 3–5 | 5–8 |
Product information
Description
Cut or crush material with three documented shear models; the source specifies 3–8 ton excavator carriers.
Tools for drilling, trenching, breaking, excavating, and working compacted ground.
Fitment-first search
Select your machine
Serial numbers are used only to review fitment. Do not enter ownership or payment information.
Related products
Breakers, Saws, Planers & Grinders
Cold Planer
Mill asphalt or concrete with XB450 and XB600 cutting-width configurations. Hydraulic flow, controls, drum tooling, and surface application require review.
View product
Breakers, Saws, Planers & Grinders

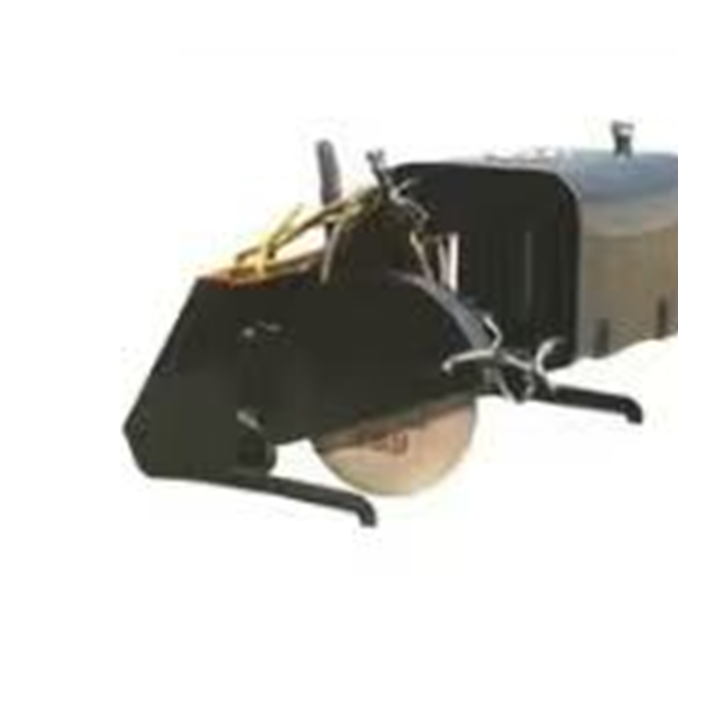

Road Cutting Saw
Cut narrow slots in paved surfaces with two documented cutting-depth configurations. Blade, guard, dust suppression, and travel direction require review.
View productProduct questions
Hydraulic Shear FAQs
What work is Hydraulic Shear intended for?
Cut or crush material with three documented shear models; the source specifies 3–8 ton excavator carriers.
Will Hydraulic Shear fit every skid steer?
No. Confirm the loader make, model, serial number, rated capacity, and mounting interface before treating Hydraulic Shear as a candidate. A compatible coupler alone does not confirm suitability for the machine or job.
Which hydraulic or electrical details are needed for Hydraulic Shear?
If the attachment is powered, provide auxiliary flow and pressure, coupler type, case-drain requirement, electrical connector, and control method. These requirements must be checked against the carrier.
Which job details affect Hydraulic Shear selection?
Describe the material, required working width or capacity, target result, site conditions, obstacles, slope, and expected duty cycle. These details help determine whether the attachment configuration is appropriate.
What should I submit for a Hydraulic Shear quote?
Send the machine plate, coupler and hose photos, hydraulic and electrical information, attachment dimensions, intended job, and any readable labels or markings. Availability and final compatibility are confirmed during quote review.
